ViperTM Rock Reamers : Unmatched Strength & Performance
At Horizontal Technology, Inc., we engineered the ViperTM Rock Reamer to eliminate the catastrophic failures of split-bit reamers and ensure the highest level of down-hole cutter security. The ViperTM delivers unrivaled durability, smoother rotation, and superior penetration rates, setting a new benchmark for HDD performance.
ViperTM Rock Reamer Models

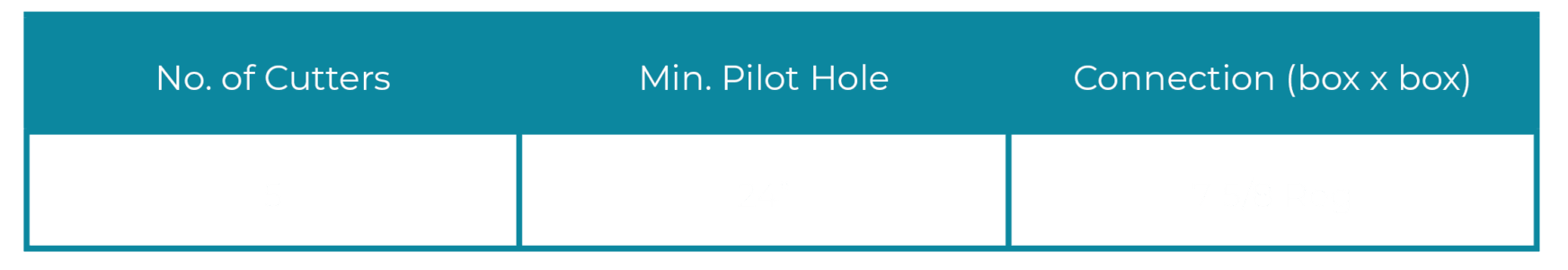

Dimensions
Opening Size & Suggested RPM
Dimensions
Opening Size & Suggested RPM
Dimensions
Opening Size & Suggested RPM
Dimensions
Opening Size & Suggested RPM
Dimensions
Opening Size & Suggested RPM
Dimensions
Opening Size & Suggested RPM
Dimensions
Opening Size & Suggested RPM
When drilling through rock, strength and reliability isn’t optional, it’s engineered.
At Horizontal Technology, Inc., we engineered the ViperTM Rock Reamer to eliminate the catastrophic failures of split-bit reamers and ensure the highest level of down-hole cutter security. The ViperTM delivers unrivaled durability, smoother rotation, and superior penetration rates, setting a new benchmark for HDD performance.

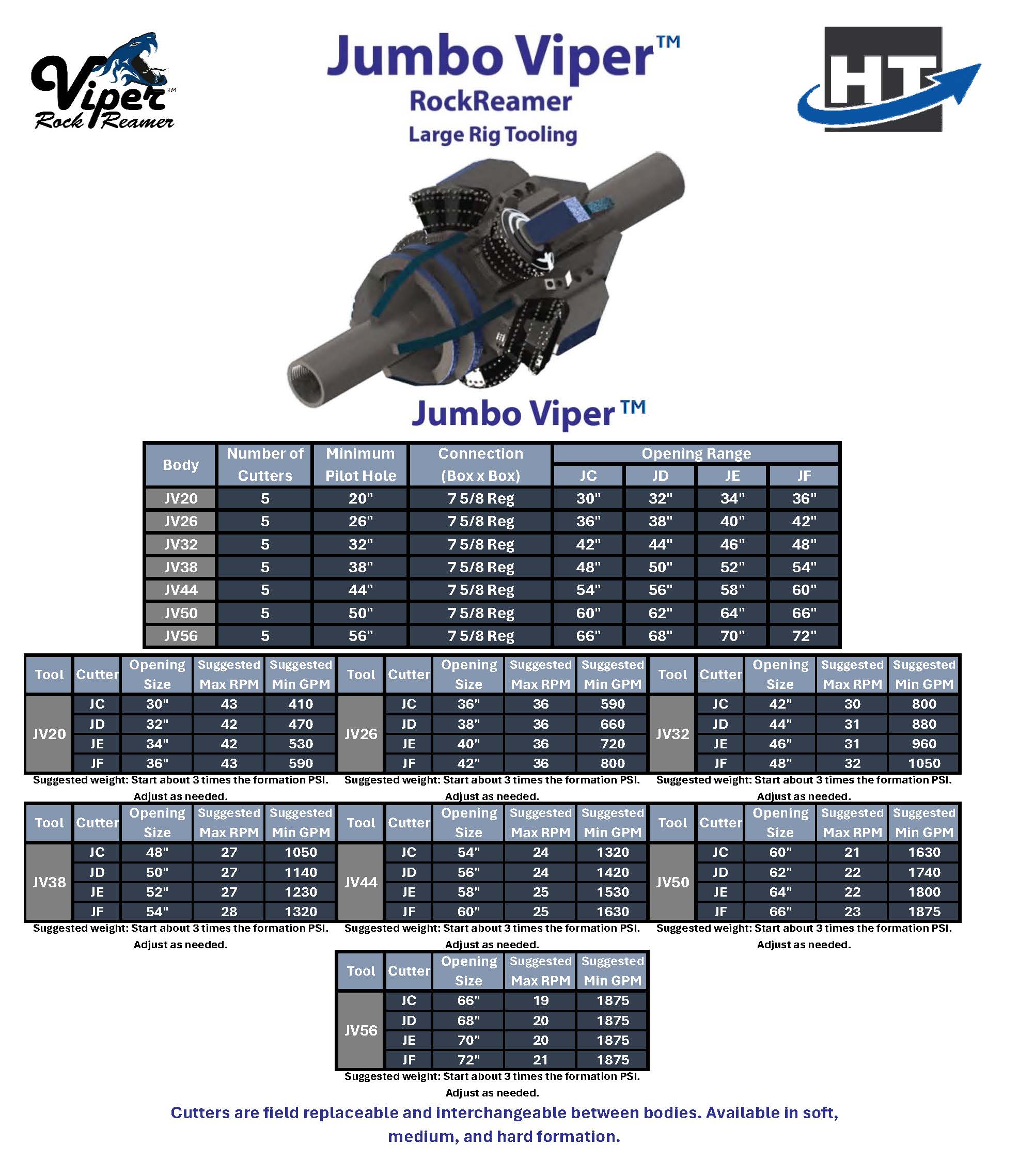

The Jumbo ViperTM Rock Reamer isn’t just strong, it’s FEA-validated using Abaqus to ensure every bolted connection and structural component performs under extreme conditions. Built in-house, the American made Jumbo ViperTM Rock Reamer is available in 4” to 56” bodies, allowing for hole sizes that range from 8 ¾”to 72”.
Benefits of the ViperTM Rock Reamer
✅ Simulation-Backed Strength:
- Ultimate Tensile Capacity: 653,500 lbs
- Ultimate Torsional Capacity: 1,148,500 ft-lbs
- Working Tensile Load: 435,500 lbs
- Working Torsional Load: 765,500 ft-lbs
✅ Precision Cutter Cones & Jetting Nozzles: For maximum cutting efficiency and optimized fluid flow for cleaning the hole.
✅ Modular Cutter Arms: Simplified maintenance and cone replacement as well as on site versatility.
✅ Robust Body & Mandrel: Built to withstand the harshest torsional and tensile forces
Unbeatable Benefits for HDD Contractors
🔹 Increased Weight Capacity with Less Torque for efficient drilling
🔹 Longer Cutter Life to reduce replacement costs
🔹 Improved Cutter Security for maximum reliability
🔹 Enhanced Circulation & Cleaning for smoother operations
🔹 Optimized Penetration Rates to speed up drilling processes
🔹 Lower Costs & No Downtime—boosting profitability
🛠️ 𝐈𝐧𝐭𝐫𝐨𝐝𝐮𝐜𝐢𝐧𝐠 𝐭𝐡𝐞 𝐕𝐢𝐩𝐞𝐫™ 𝐑𝐨𝐜𝐤 𝐑𝐞𝐚𝐦𝐞𝐫 𝐂𝐨𝐧𝐞 𝐑𝐞𝐭𝐞𝐧𝐭𝐢𝐨𝐧 𝐆𝐮𝐚𝐫𝐚𝐧𝐭𝐞𝐞
Over the past decade, the 𝐇𝐨𝐫𝐢𝐳𝐨𝐧𝐭𝐚𝐥 𝐓𝐞𝐜𝐡𝐧𝐨𝐥𝐨𝐠𝐲 𝐕𝐢𝐩𝐞𝐫™ 𝐑𝐨𝐜𝐤 𝐑𝐞𝐚𝐦𝐞𝐫 has reamed more than one million feet, ranging from 8.75-inch to 72-inch diameters, from soft formations to some of the hardest rock, 𝐰𝐢𝐭𝐡𝐨𝐮𝐭 𝐞𝐯𝐞𝐫 𝐥𝐨𝐬𝐢𝐧𝐠 𝐚 𝐜𝐨𝐧𝐞.
✅ 𝐎𝐮𝐫 𝐆𝐮𝐚𝐫𝐚𝐧𝐭𝐞𝐞:
We stand behind every product we make and every service we offer, and we want you to have that same level of confidence in our Viper™ Rock Reamers. To ensure that level of confidence, we offer the 𝐂𝐨𝐧𝐞 𝐑𝐞𝐭𝐞𝐧𝐭𝐢𝐨𝐧 𝐆𝐮𝐚𝐫𝐚𝐧𝐭𝐞𝐞: a guarantee that if the reamer is assembled properly with all bolts torqued to specification, and is tripped out when bearings seize or earlier and change out when cone(s) wears out, and a cone still falls off and a cone is still lost in hole, then Horizontal Technology will not charge for:
➦ Replacement 𝐜𝐮𝐭𝐭𝐞𝐫𝐬
➦ Replacement 𝐚𝐫𝐦𝐬
➦ 𝐑𝐞𝐧𝐭𝐚𝐥 𝐟𝐞𝐞𝐬 on the reamer body
𝑷𝒆𝒂𝒄𝒆 𝒐𝒇 𝑴𝒊𝒏𝒅, 𝑩𝒖𝒊𝒍𝒕 𝑰𝒏.
This guarantee reflects our commitment to durability, precision engineering, and customer trust.
For the toughest jobs, trust the tool designed for strength, precision, and longevity. Experience ViperTM Rock Reamer performance today!
Industry-Leading Features
✔ Proprietary Bearing Design for increased durability
✔ Large Cutter for high-efficiency reaming
✔ Maximum Shirttail Protection for extended tool life
✔ Engineered Insert Configuration to optimize performance
✔ Customized & Reverse Nozzles for enhanced fluid control
✔ Versatile, Easily Changeable Cutters for adaptable drilling solutions
Unmatched Benefits for HDD Contractors
🔹 Higher Weight Capacity with Less Torque—boosting efficiency
🔹 Extended Cutter Life—reducing replacement costs
🔹 Maximum Cutter Security—preventing catastrophic failures
🔹 Optimized Circulation & Cleaning—improving operational performance
🔹 Superior Penetration Rates—accelerating drilling speeds
🔹 Minimized Risk & Longer Tool Life—reducing downtime and costs
Built to handle the toughest conditions, the ViperTM Rock Reamer delivers power, precision, and profitability where it matters most. Ready to take your drilling to the next level? Contact Horizontal Technology, Inc. today!
Engineering & Design—Strategic Solutions for Pipeline & Facility Projects
At Horizontal Technology, Inc., we deliver comprehensive engineering and design services that empower Oil & Gas clients to efficiently plan, develop, and execute pipeline and facility projects. With our 360-degree approach, clients gain access to highly specialized teams—ensuring informed decision-making and the confidence to move forward successfully.
A Smarter, More Efficient Way to Build
Our innovative multi-team strategy allows companies to rapidly assess multiple options, optimize resources, and minimize risks. With our industry-leading pipeline and facilities professionals, we provide the expertise needed to complete projects of any size—anywhere in the world.
Comprehensive Engineering & Design Services
✔ Route Evaluation & Selection for strategic planning
✔ Estimating & Scheduling to optimize project timelines
✔ Constructability Assessments ensuring feasibility before breaking ground
✔ Risk Analysis, Contingency & Mitigation Planning to safeguard success
Advanced Engineering & Regulatory Expertise
🔹 Basic Engineering Design (BED)—foundation for efficient project execution
🔹 Conceptual & Preliminary Planning—early-phase insights to maximize outcomes
🔹 Regulatory Applications & Budget Estimates for seamless approvals
🔹 Front End Engineering Design (FEED)—stress analysis, annular pressure modeling & geometric design
Engineering Design Specifications & Construction Planning
📌 Detailed Drawings & Specifications—precision-driven documentation
📌 Procurement & Contract Preparation—supporting smooth execution
📌 Tender Assistance & Management—expert guidance through bidding processes
📌 Construction Planning & Cost Control—ensuring efficiency and profitability
At Horizontal Technology, Inc., we don’t just design pipelines—we engineer success. Get started today and discover how our expertise can elevate your project from concept to completion.
Locked In. Locked On.
Zero Cutter Loss. Period.
