Horizontal Technology, Inc. has been instrumental in the evolution and development of horizontal hole opening for the HDD industry. As the industry has expanded, our equipment has adjusted to meet the needs of the clients and their challenging projects.
Catalogues /PDFs
Download our latest Horizontal Technology Inc. catalogs, manuals, and brochures.
Catalogues /PDFs
Download our latest Horizontal Technology Inc. catalogs, manuals, and brochures.

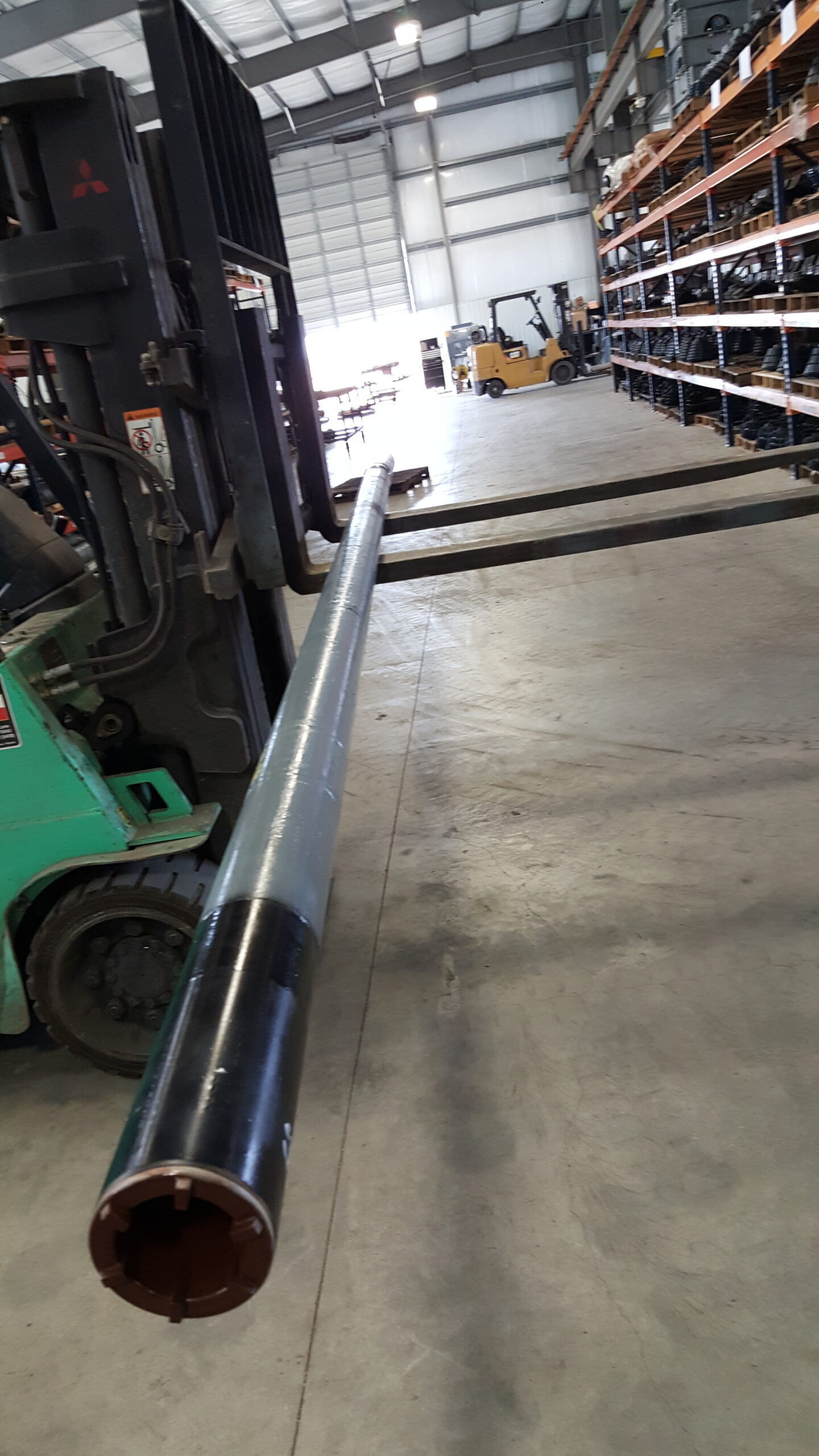

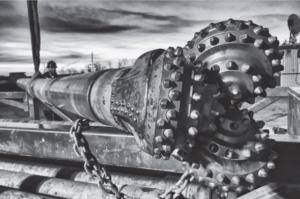

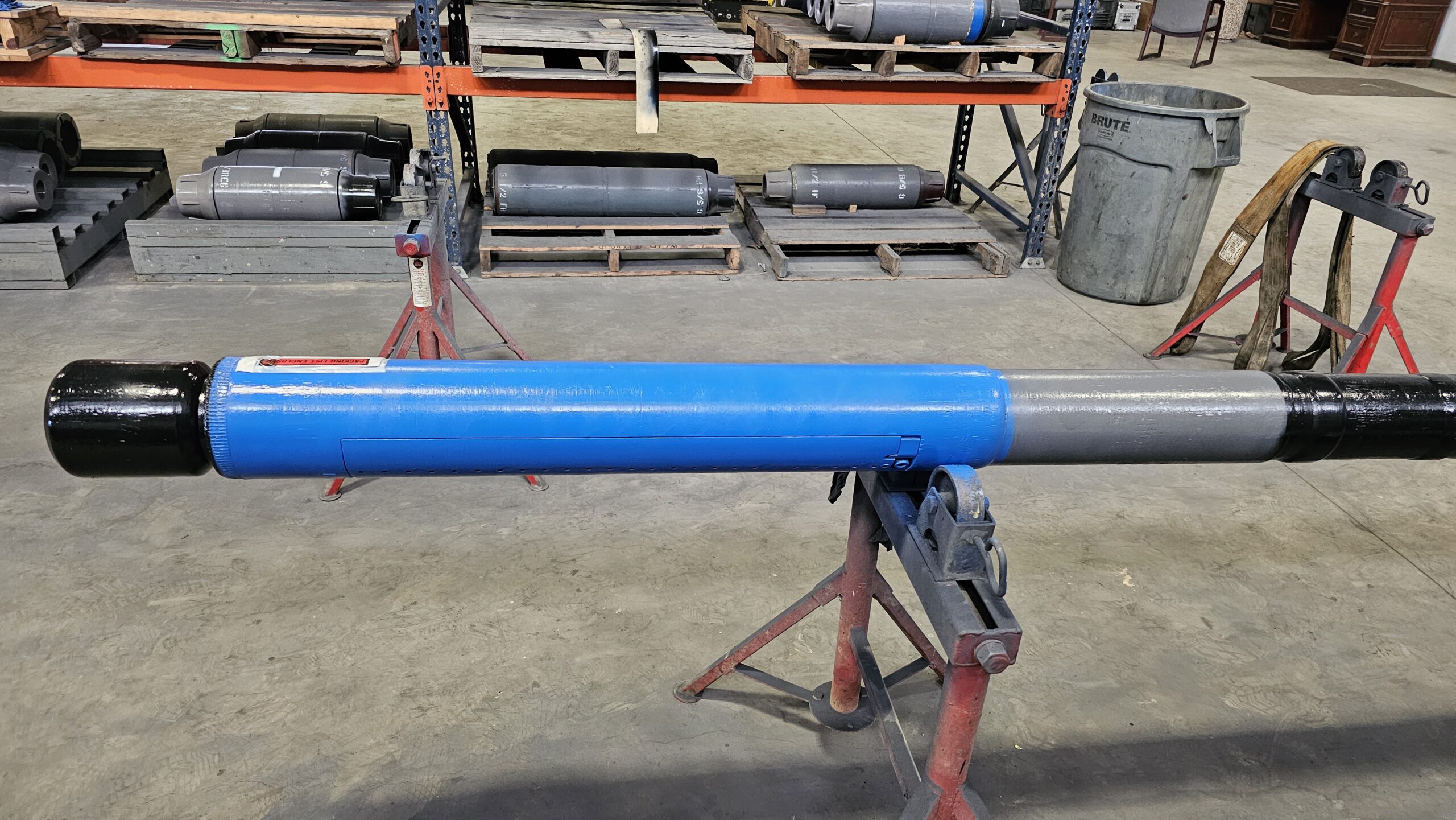

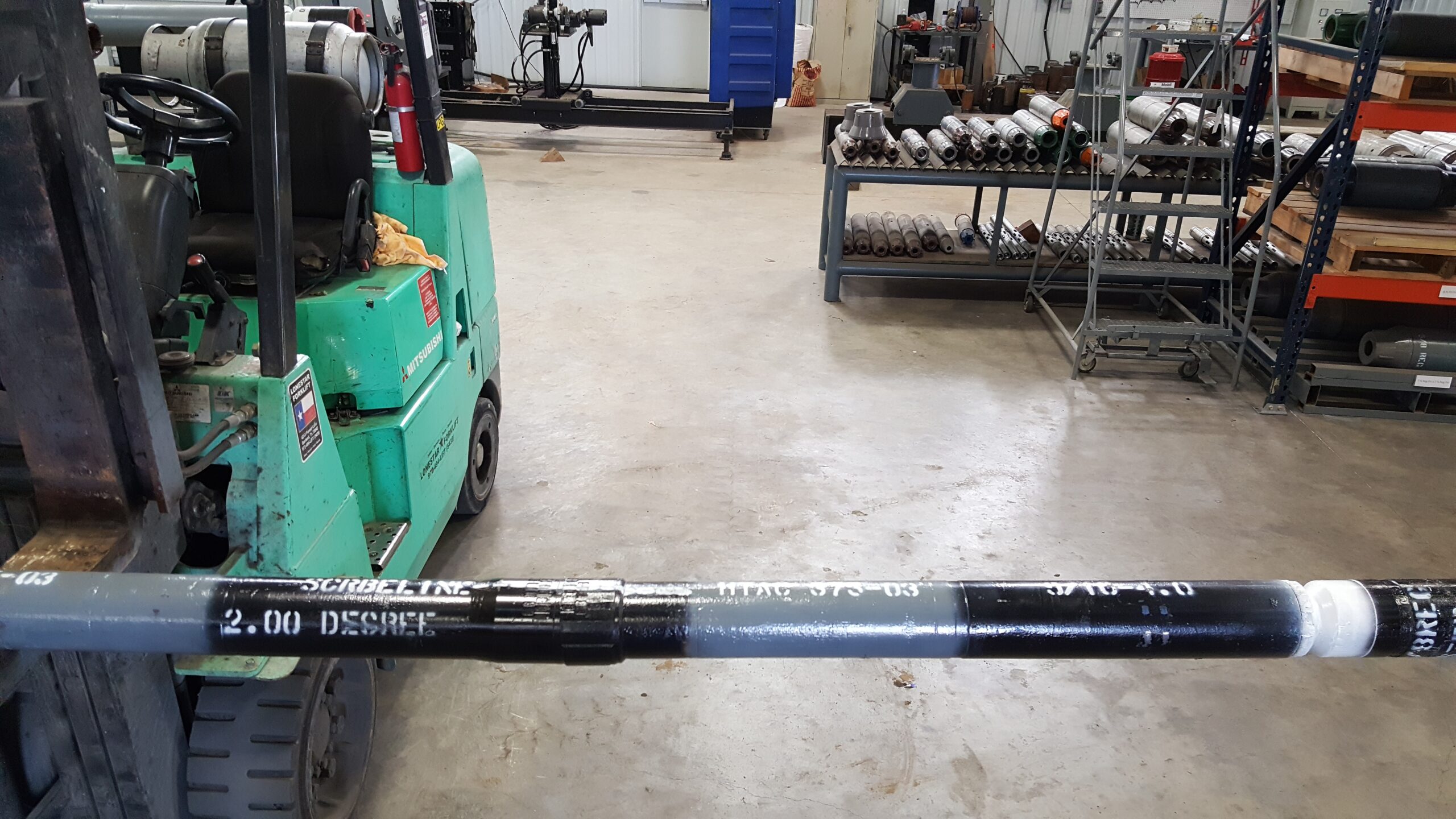

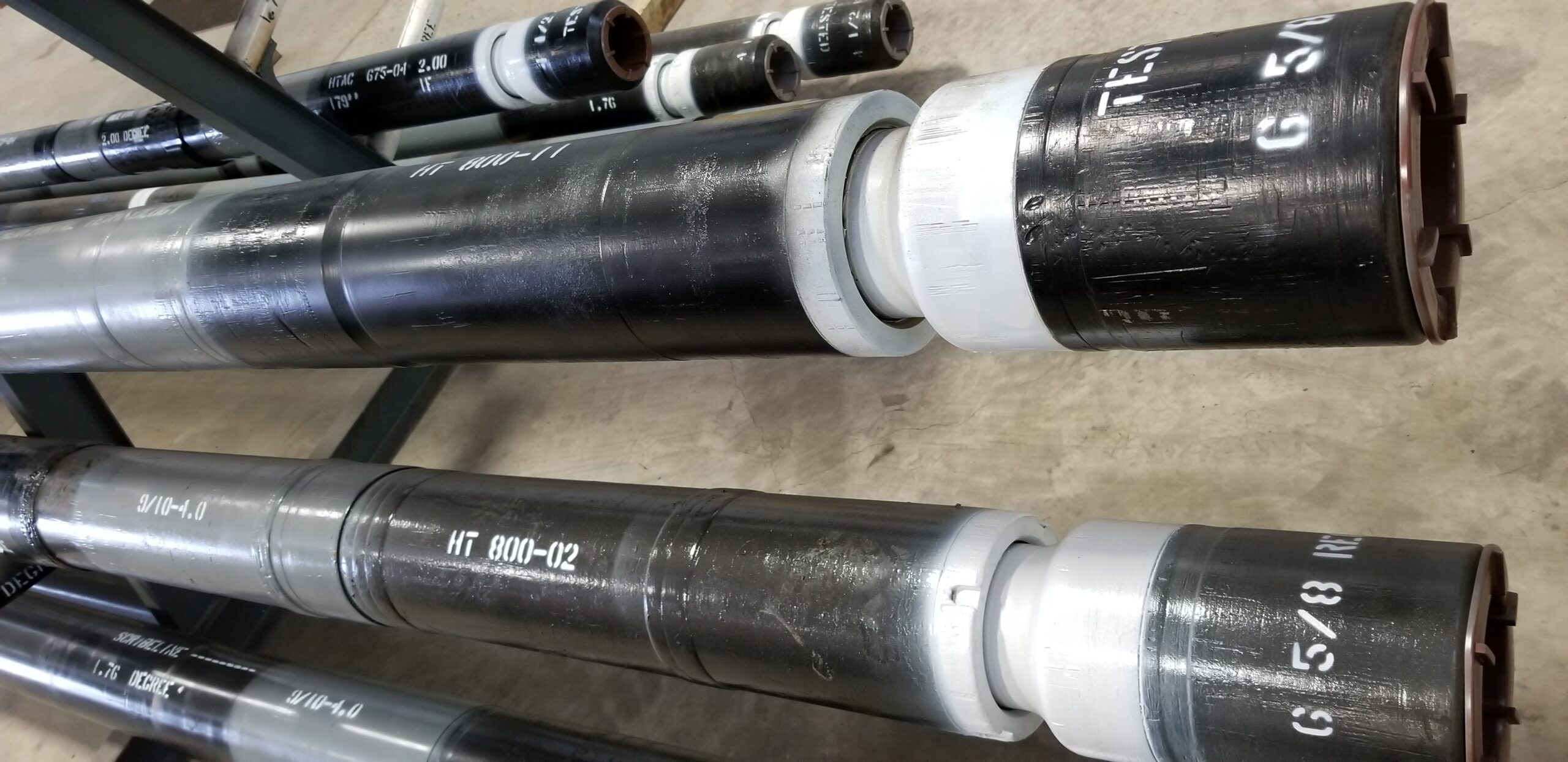

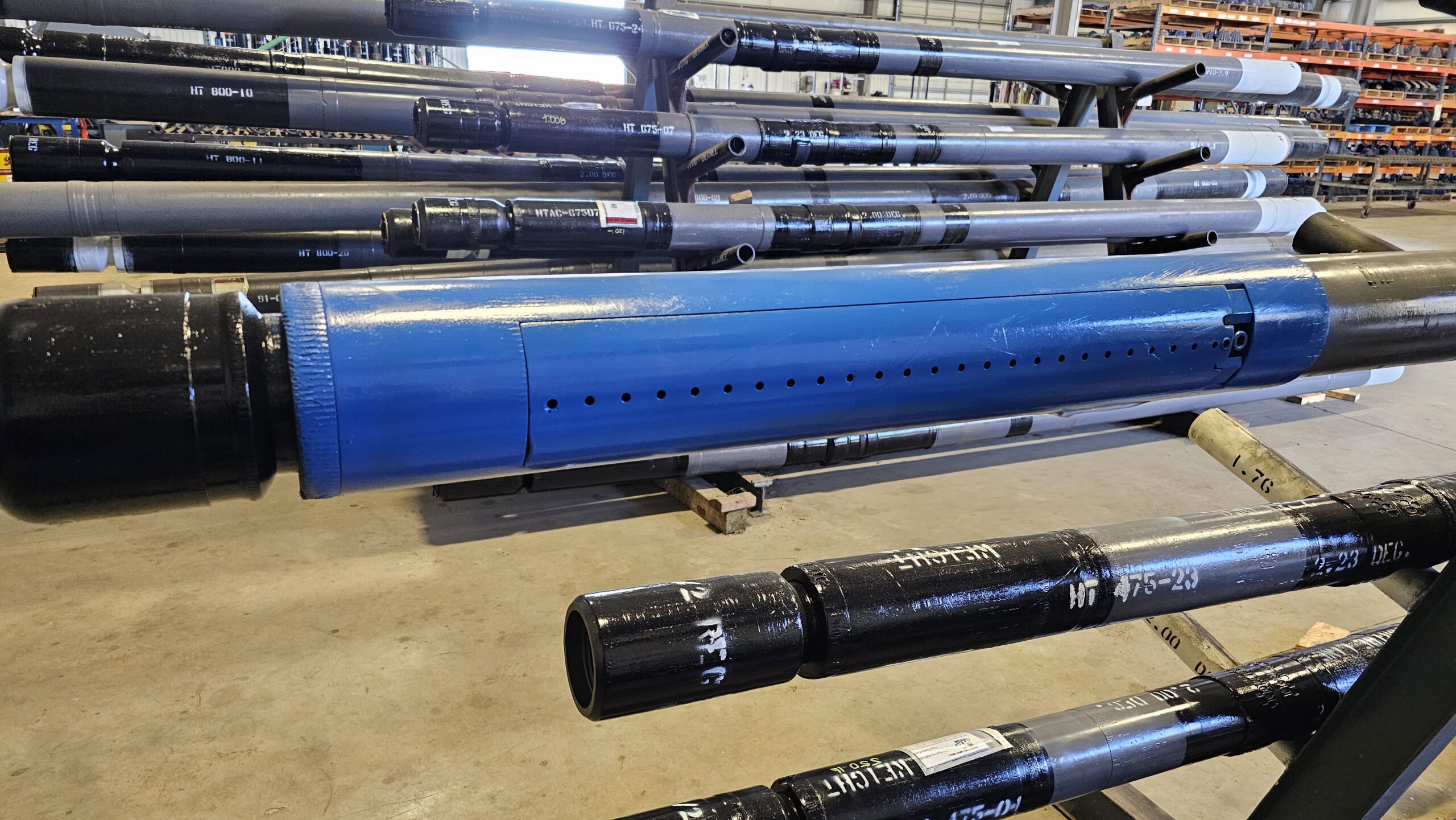

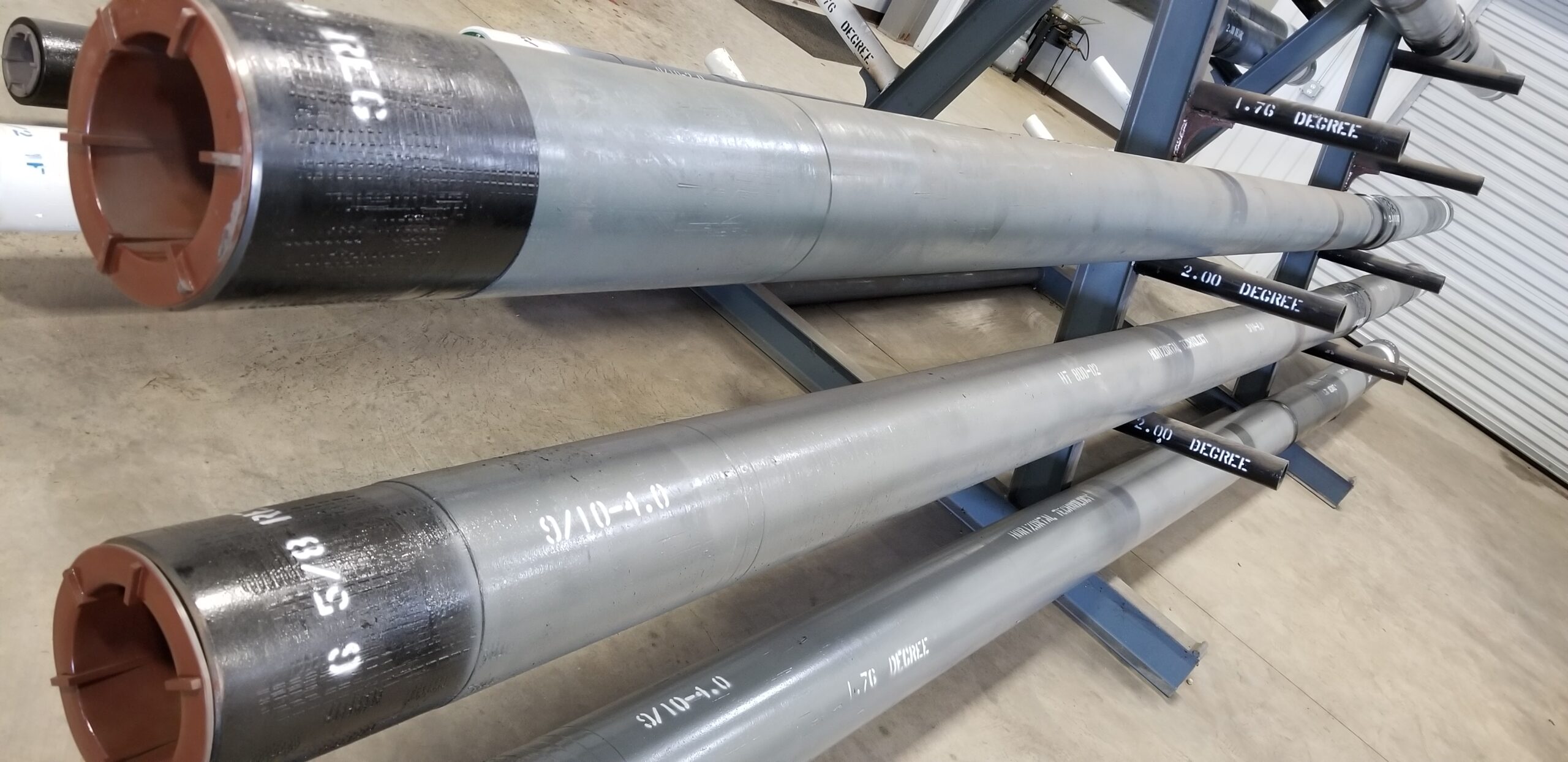

Industry-Leading HDD Mud Motors
At Horizontal Technology, Inc., we deliver the best HDD motors available, designed to maximize performance, minimize costs, and extend tool life. Engineered for high torque and low flow, our rugged motors improve penetration rates, reduce stalls, and endure the toughest drilling environments—saving contractors time and money.
Advanced Features for Peak Performance
✔ Low-Flow Design—reduces mud costs and pump wear
✔ High-Torque Output—ensures greater drilling efficiency
✔ Optimal RPM—extends bit life and improves penetration rates
✔ Shorter Length—enhances steering tool proximity for better guidance
✔ Adjustable Housing—provides on-site modifications, reducing downtime
✔ Safety Catch Sub—protects against tool loss and costly retrieval operations
Available HDD Motor Options
🔹 3-3/4” Motor Specs
🔹 3-3/4” Sonde Motor Specs
🔹 4-3/4” Motor Specs
🔹 4-3/4” Sonde Motor Specs
🔹 6-3/4” Motor Specs
🔹 6-3/4” Sonde Motor Specs
🔹 8” Motor Specs
🔹 Adjust Housing Instructions
🔹 Drilling Considerations
Unmatched Benefits for HDD Contractors
🔹 Lower Mud Costs & Less Equipment Wear—improving overall efficiency
🔹 Higher Penetration Rates—reducing drilling time and optimizing project speed
🔹 Improved Cutter Security—preventing damaging stalls
🔹 Enhanced Steering & Accuracy—bringing guidance tools closer to the bit
🔹 Reduced Downtime—allowing for real-time housing adjustments
🔹 Stronger Tool Protection—minimizing risk and preventing expensive fishing operations
Built for power, designed for durability, and fine-tuned for precision—Horizontal Technology, Inc.’s HDD motors lead the industry in performance and reliability.
Contact us today to elevate your drilling capabilities!

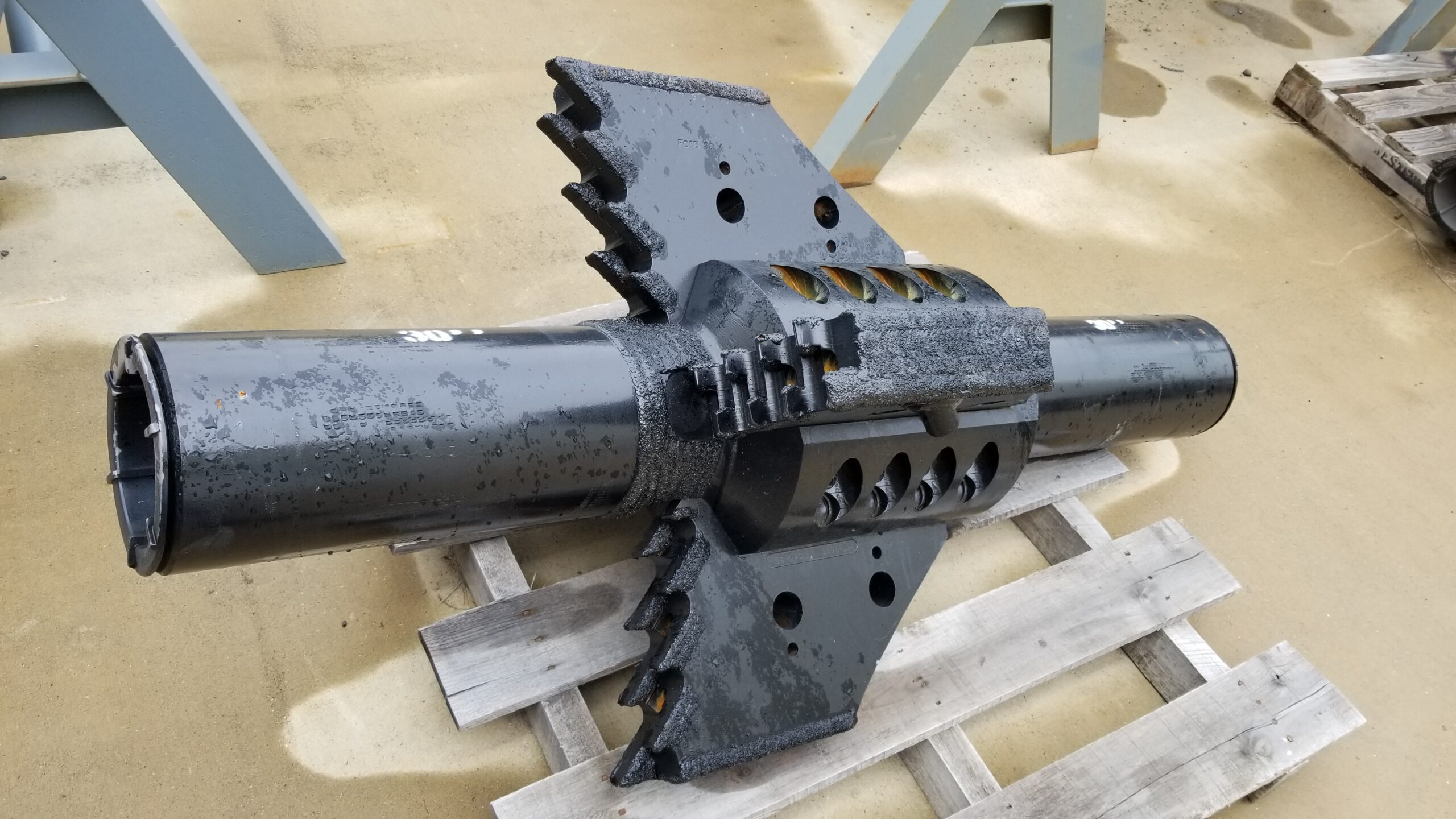

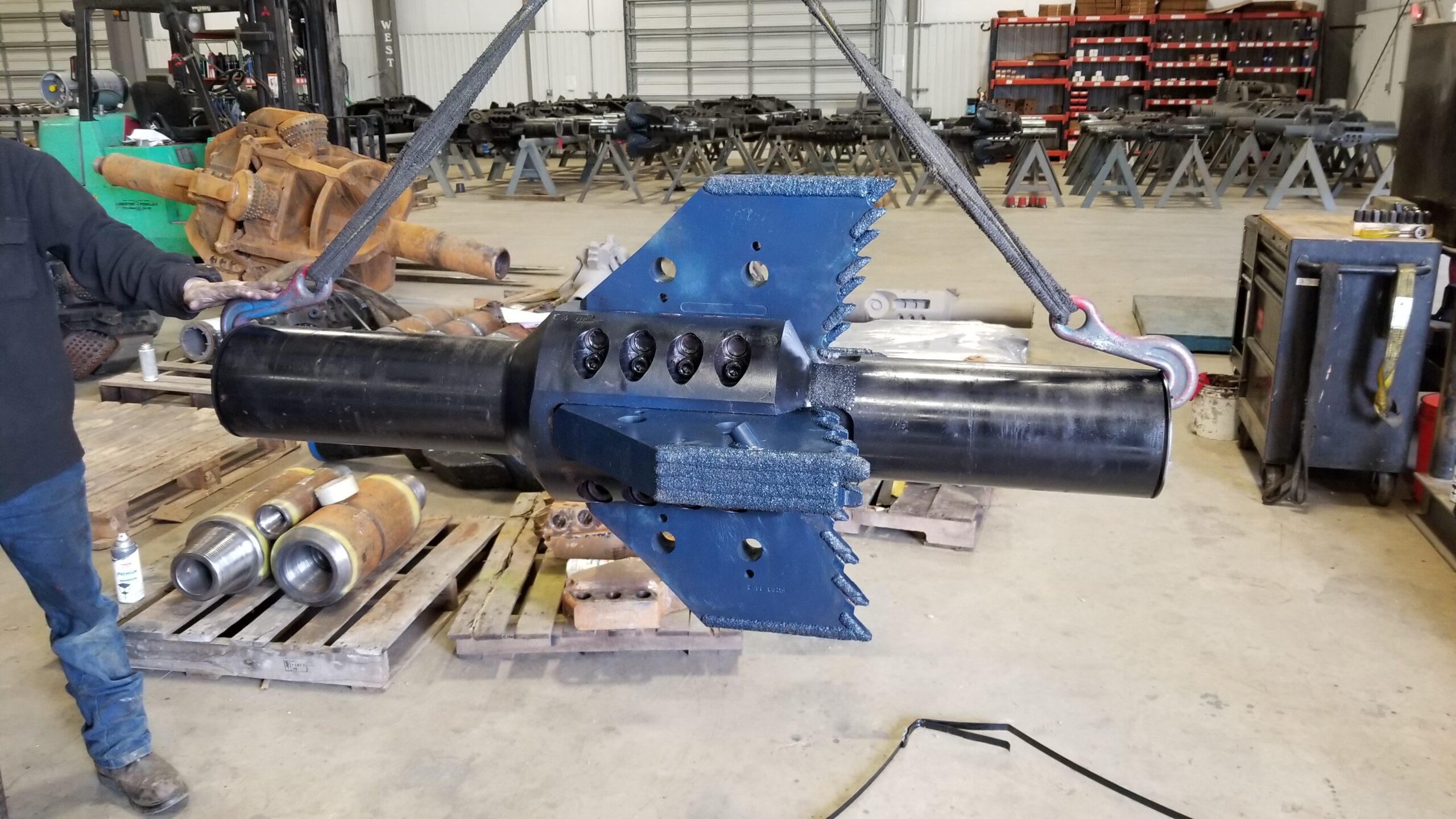

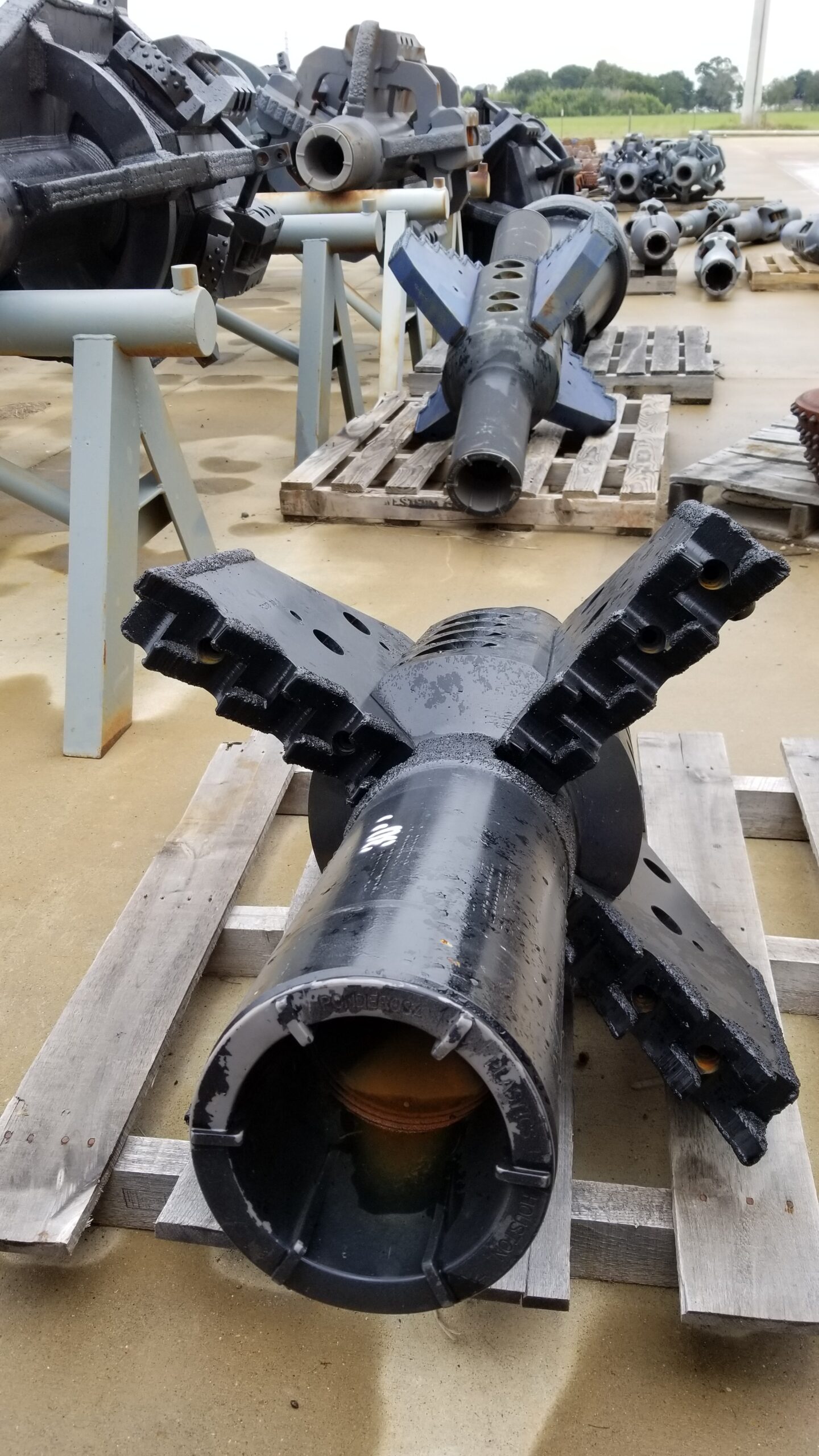

Winged Warrior Field Adjustable Fly Cutters & Barrel Reamers
Horizontal Technology, Inc. specializes in custom-built Fly Cutters and Barrel Reamers designed for precision hole expansion and conditioning in alluvial formations.
- Fly Cutters effectively increase hole diameter in alluvial soils
- Barrel Reamers optimize existing holes, typically undersized by a couple of inches
With a ready-to-ship inventory and custom manufacturing options, we ensure solutions tailored to your specific needs.

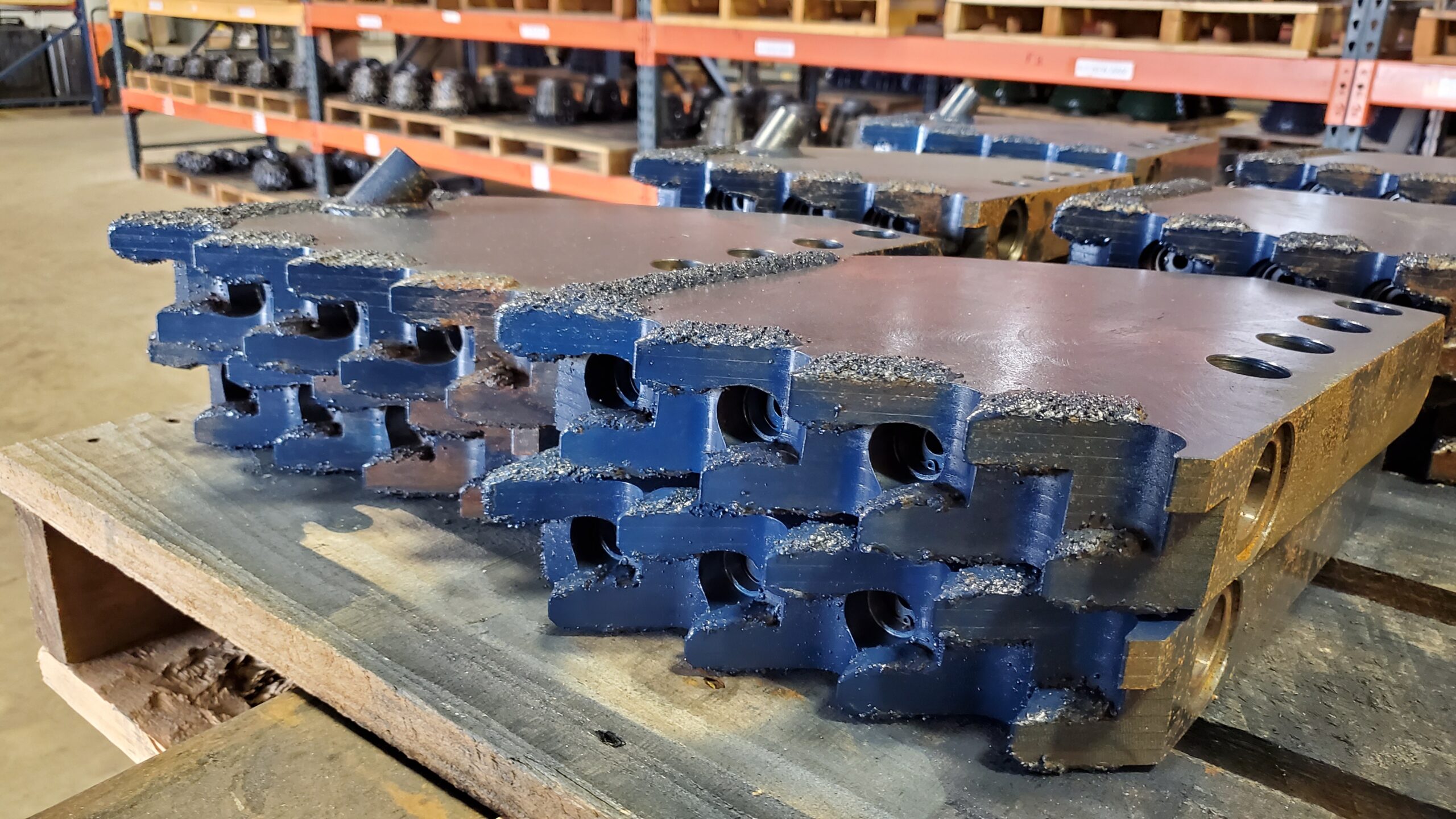

Field-Adjustable Winged Warriors
Available in sizes 12”, 18”, 20”, 24”, 30”, 36”, 42”, 48”, 54”, and 60”, these tools help reduce clay balling and are available for same-day shipment.

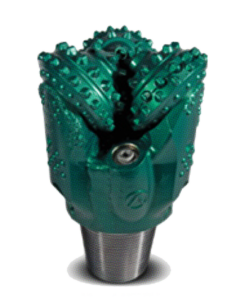

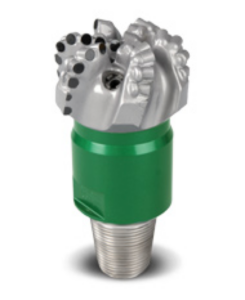

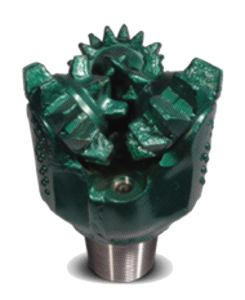

Drill Bits
Horizontal Technology, Inc. provides only the best, newly
manufactured rock bits designed for the unique rigorous
conditions of HDD. No re-tips or re-circulated products, ever.
Horizontal Technology uses the next generation in bit performance – the Varel High Energy (HE) Series Bit. The HE Series bits can withstand applications where the combination of bit weight and rotary speed is at the high end of the spectrum and, by so doing, deliver better performance and outcomes in critical applications. HE Series bits are engineered as a solution to increasing demands on drill bits which require greater weight on bit and higher rotations per minute for faster drilling.

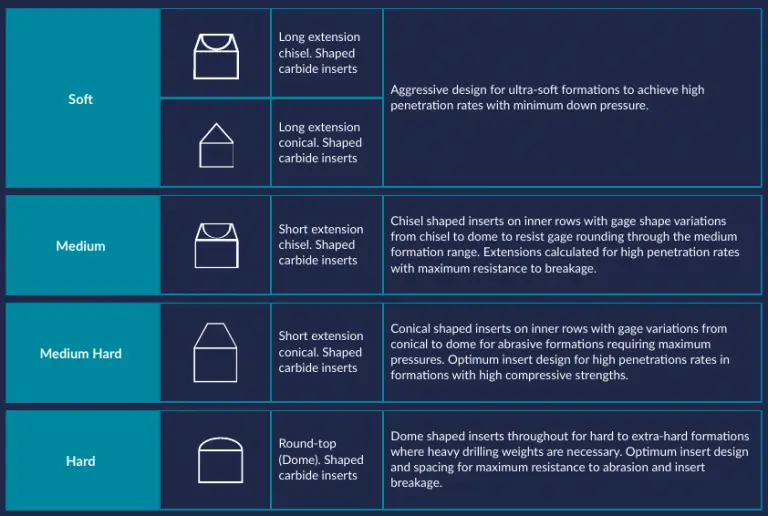

About Carbide Inserts

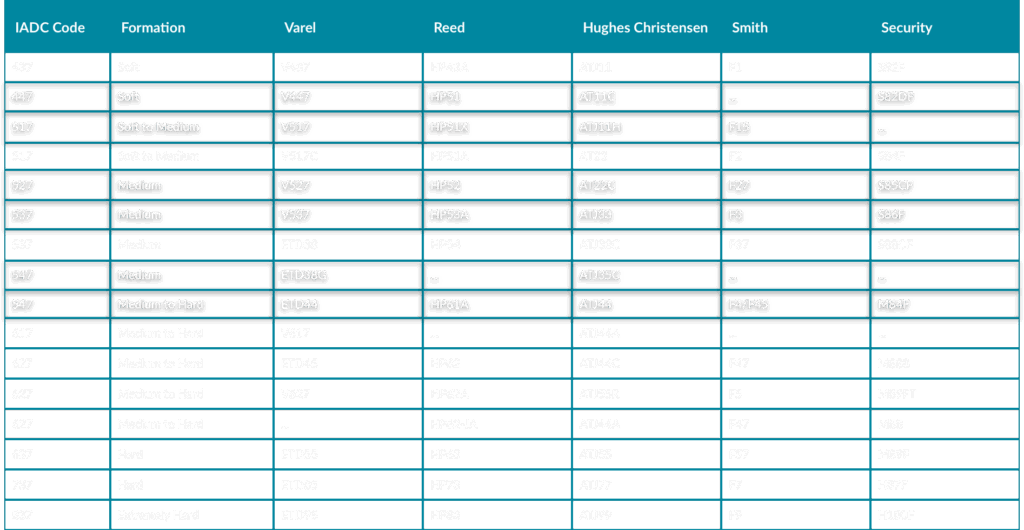

Cross Reference Chart

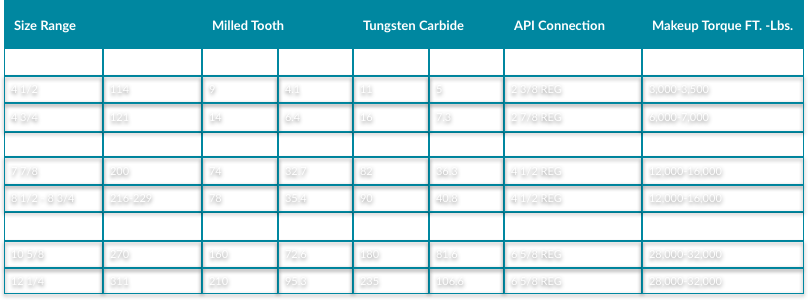

HDD Bit Specifications
Rig Supplies – Ready When You Are
Horizontal Technology, Inc. offers a comprehensive range of rig supplies, including:
- Jetting Assemblies
- Swivels & Rollers
- Downhole & Tracking Wire
- Pull Heads & Crimps
- Heat Shrink & Spiders
Rig Supplies: Subs
- Crossover Subs
- Standard Connections
- Special Connections including
- Vermeer Connections
- Ditch Witch Connections
- Bit Subs
- Float Subs
- Float Valves
- Weeper Subs
- Pad-Eye Subs
- Plug Subs
- Non-Magnetic Orientation Subs Assemblies
- Non-Magnetic Pressure Orientation Subs Assemblies
- Non-Magnetic Bent Subs
- Bit Shims
No matter the scale of your project, we have the tools you need—available 24/7 to keep your operations running smoothly.

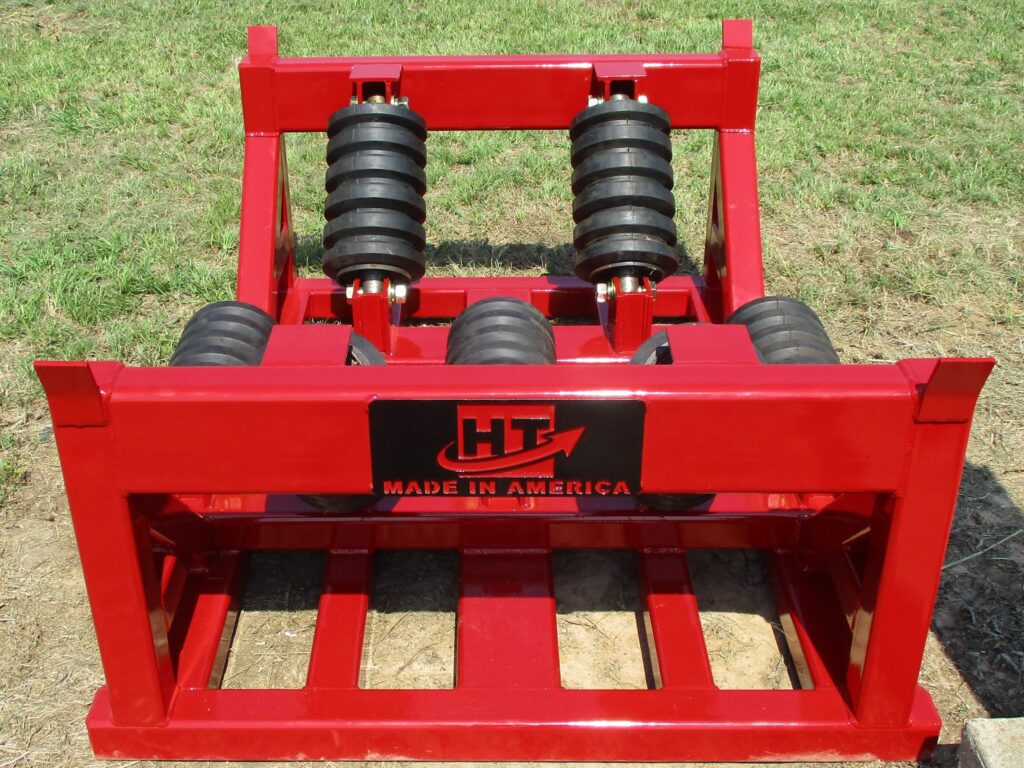

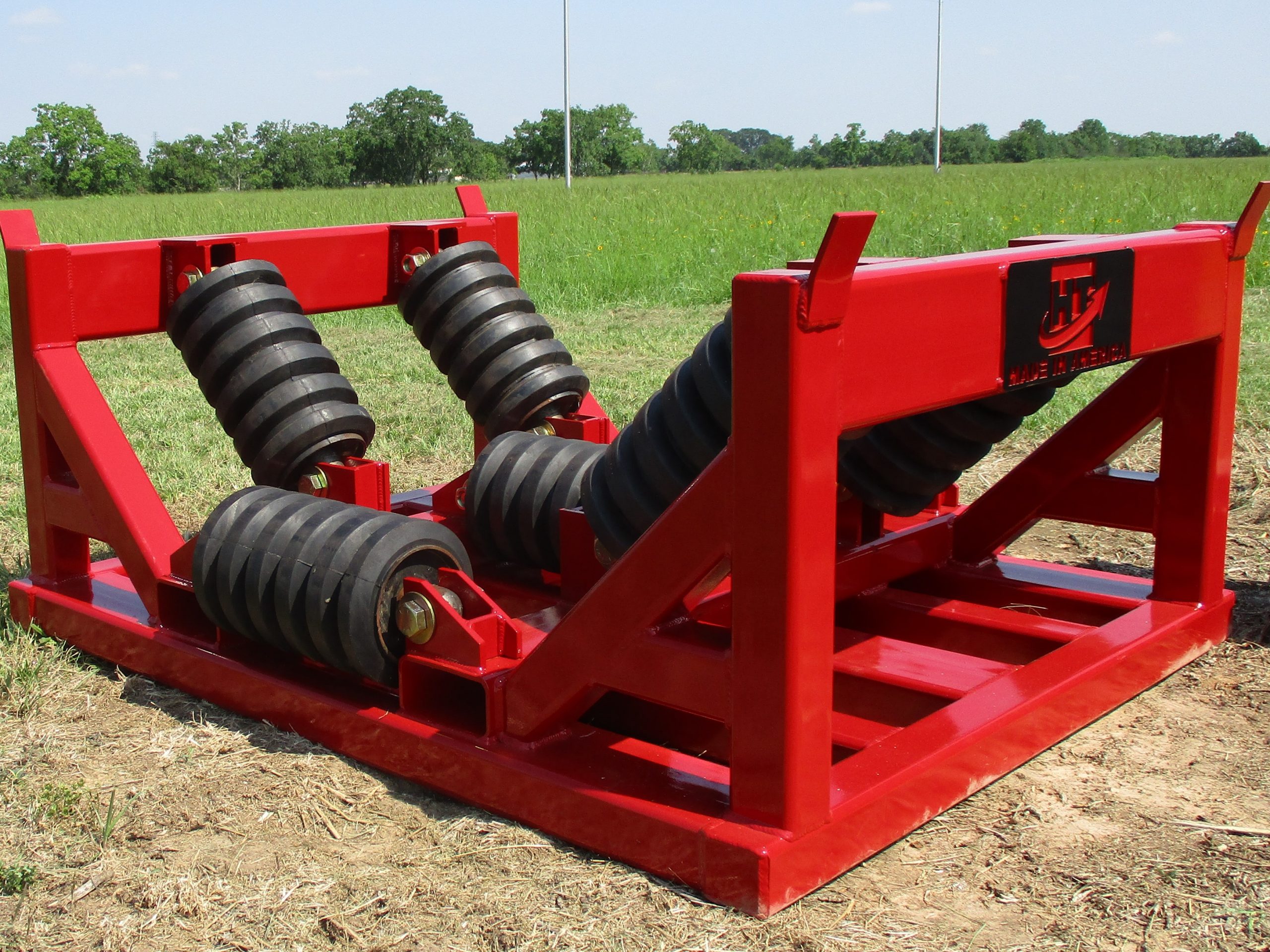

HDD Engineered Rollers – Built for Every Job
Horizontal Technology, Inc. provides engineered rollers in multiple sizes, accommodating diameters up to 62”.
No matter the scale of your project, we have the tools you need—available 24/7 to keep your operations running smoothly.
Precision Steering Services—Protecting Your Investment
At Horizontal Technology, Inc., our expert Guidance Technicians set the standard for accuracy and integrity in the pipeline and utility industry. We provide unmatched documentation and service packages, delivering long-term protection and incalculable value to owners, HDD contractors, and engineers.
For HDD Contractors
🔹 Pre-bore design, post-bore as-builts, training, intersect services
🔹 Raising the bar for industry professionalism through precise pilot holes
🔹 Magnetic steering tools—the backbone of HDD success
🔹 Gyro steering tools –designed to work with magnetics, creating the most versatile and accurate steering system available
For HDD Design Engineers & Pipeline Owners
🔹 Pre-bid & pre-bore planning
🔹 Early on-site surveying and data reviews
🔹 A practical plan for efficient project execution—saving time and money
Unmatched Expertise & Training
✔ Industry-leading apprenticeship program—covering drill bits, mud systems, pumps & surveying
✔ 288+ hours of in-house training with advanced steering equipment
✔ The HDD industry’s most rigorous magnetic guidance training—tailored for clients

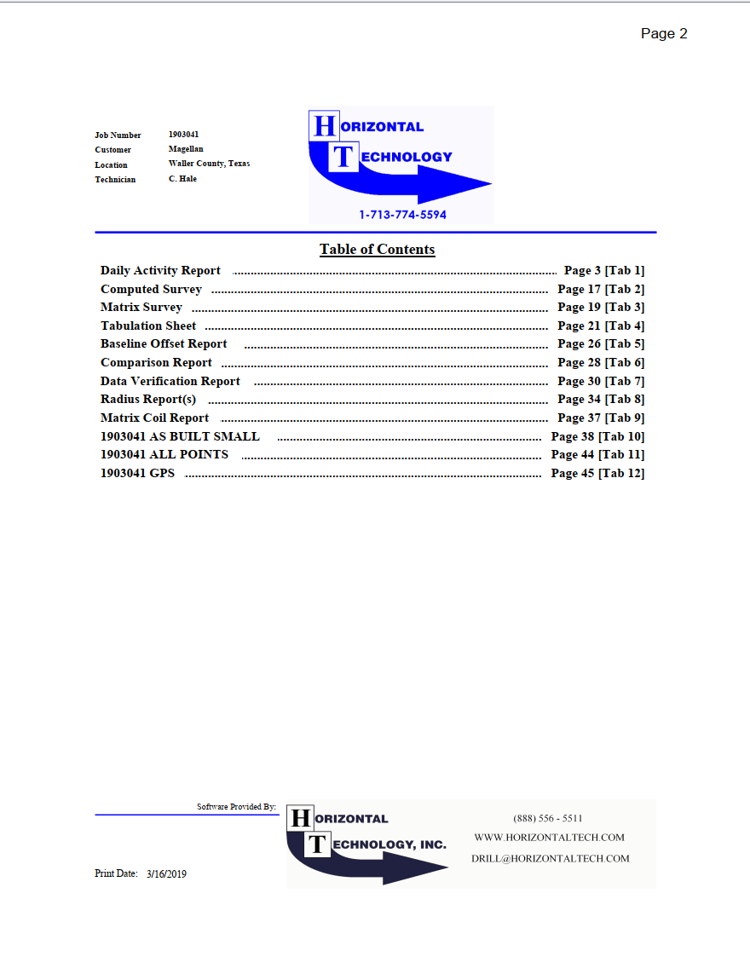

Comprehensive As-Builts & Post-Bore Packages
📌 As soon as the bit exits, our guidance technicians provide detailed post-bore data packets
📌 No hidden, thrown-away, or recalculated records
📌 A finalized job packet with directional data & daily reports—sent directly to your office
The Future of HDD Starts with Precision
For industry-leading expertise, documentation, and guidance, partner with Horizontal Technology, Inc.. Let’s drive efficiency, accuracy, and success—contact us today!
Engineering & Design
Horizontal Technology, Inc. provides a full range of services to effectively manage pipeline and facility projects. Our Oil and Gas clients are always looking for a better and more efficient way to approach and develop their pipeline and facilities projects.
Horizontal Technology, Inc.’s 360-degree approach allows clients and companies to leverage the highly specialized small teams from each division to help them quickly and efficiently look at several different options and allows them to proceed with confidence. This 360-degree approach combined with the pipeline and facilities professionals at Horizontal Technology, Inc. allows the client to have the confidence to plan and execute any project, of any size, anywhere.
SERVICES INCLUDE:
- Route evaluation and selection
- Estimating and scheduling
- Constructability of the pipeline routes
- Evaluation of construction feasibility
- Risk analysis
- Contingency and mitigation planning
- Basic Engineering Design (BED)
- Conceptual and preliminary planning
- Regulatory application
- Budget estimate
- Front End Engineering Design (FEED)
- Stress analysis, annular pressure modeling, and geometric design
- Engineering Design Specifications (EDS)
- Preparation of detailed drawings & specifications
- Procurement
- Contract preparation, tender assistance, tender management
- Construction planning and cost control
Innovation That Moves HDD Forward
For decades, we’ve transformed the way HDD contractors approach drilling, enhancing productivity, precision, and profitability across the industry.
Let’s take your next project further—contact us today and experience the future of HDD tooling.

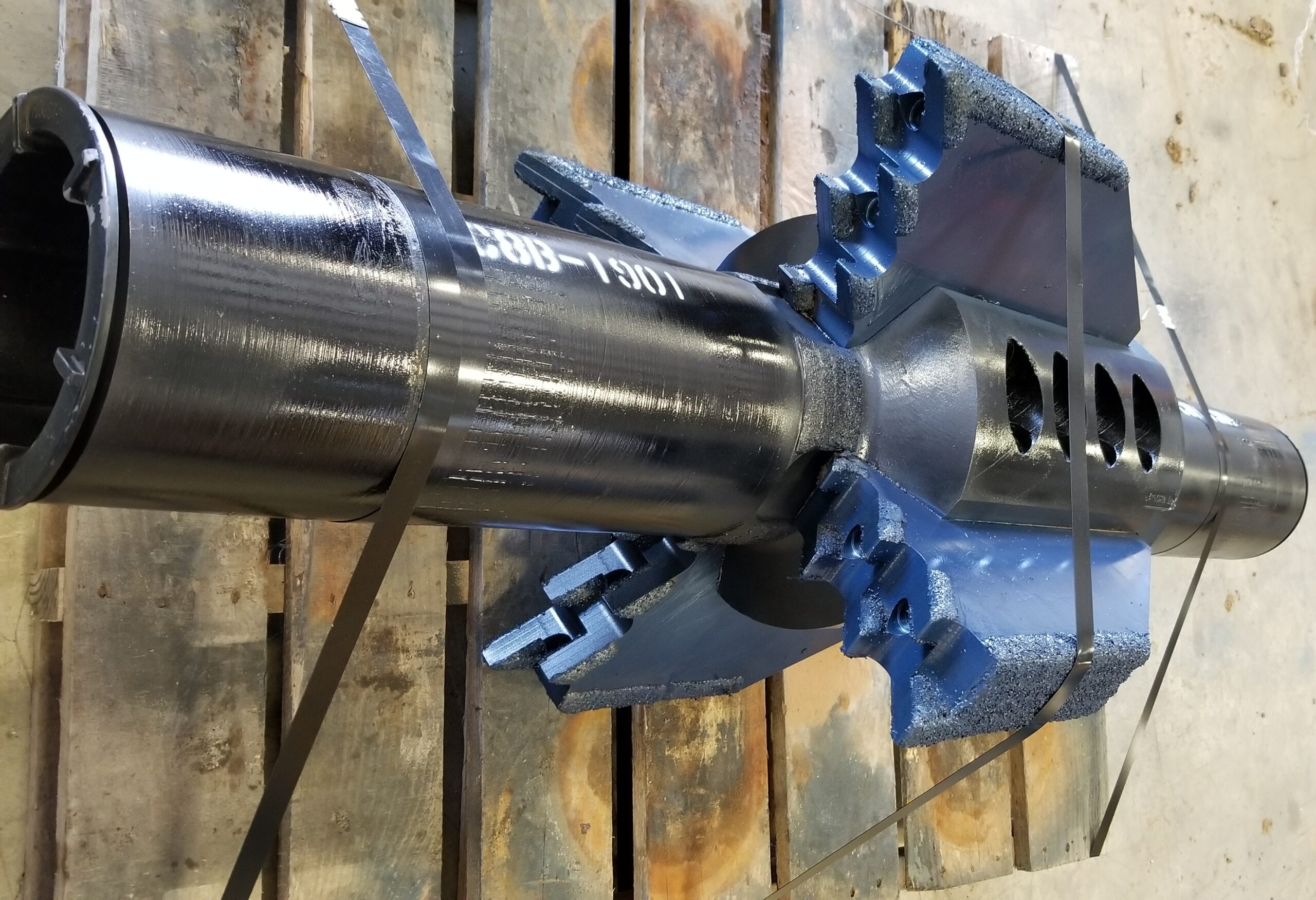

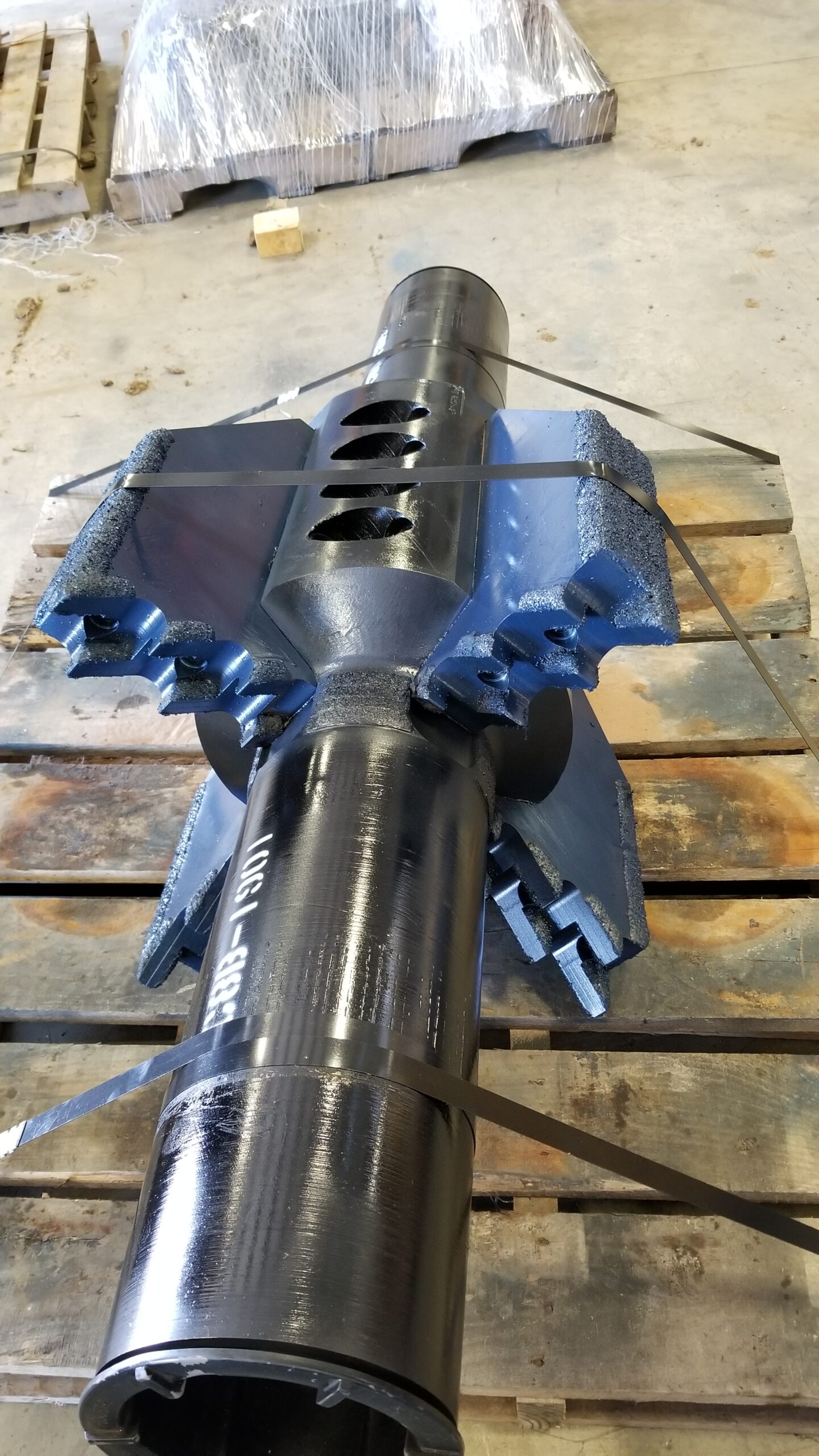

Viper RockReamers: Unmatched Strength & Performance
At Horizontal Technology, Inc., we engineered the Viper RockReamer to eliminate the catastrophic failures of split-bit reamers and ensure the highest level of down-hole cutter security. The Viper delivers unrivaled durability, smoother rotation, and superior penetration rates, setting a new benchmark for HDD performance.DataTraX: The Gold Standard in HDD Steering

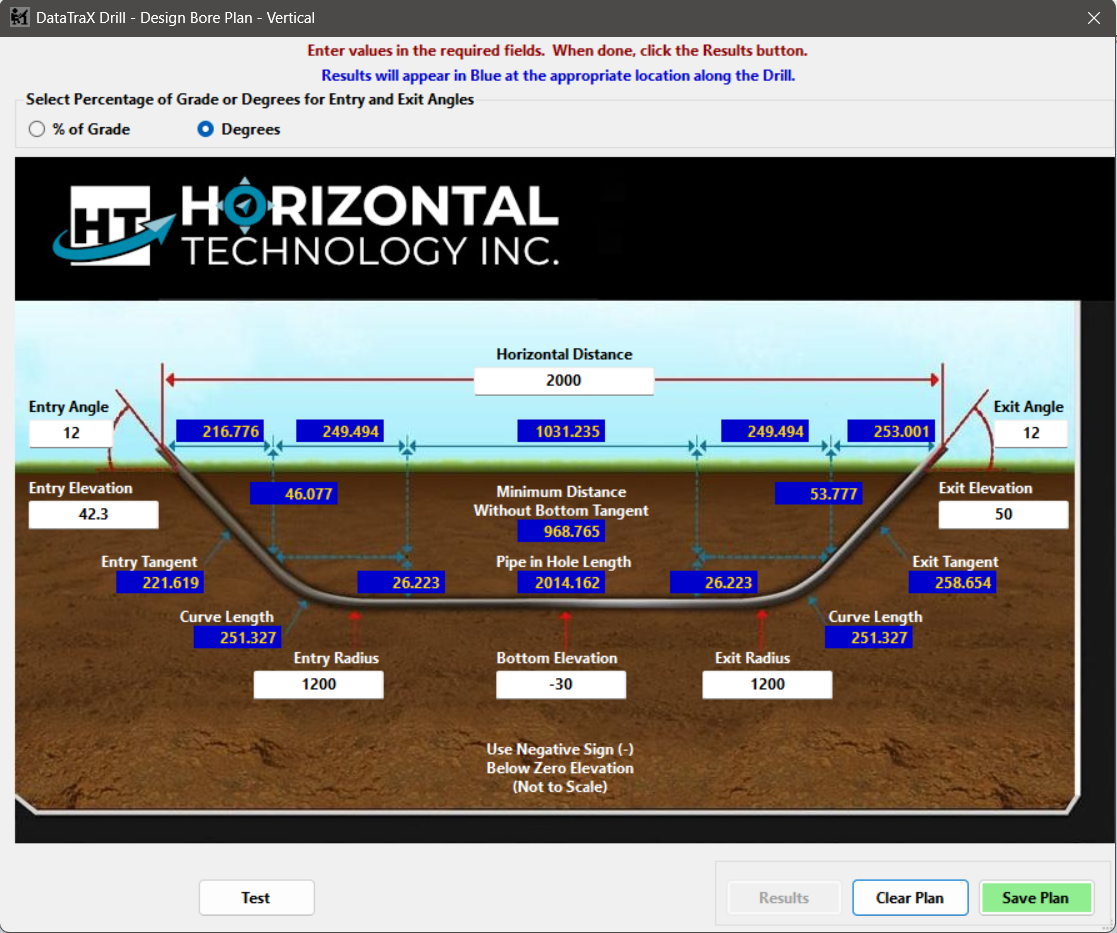

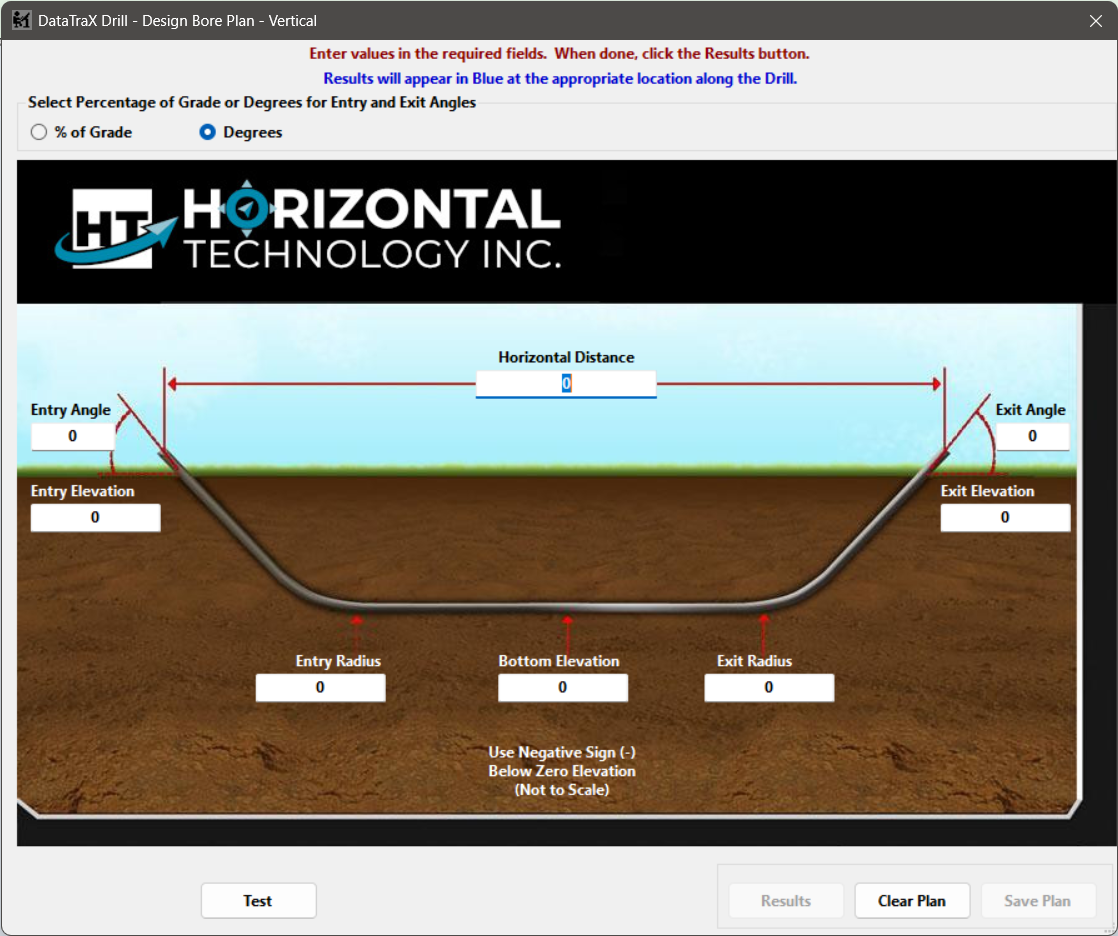

At Horizontal Technology, Inc., innovation drives everything we do. We pioneered the first DC tracking software to use the running line or drill path as the point of reference, transforming HDD steering accuracy forever.
With DataTraX, contractors gained unmatched precision, enhanced safety, and significantly lower costs. By eliminating footage fees, it streamlined operations while solving key challenges in horizontal curves—reducing survey errors and eliminating mis-guided pilot holes.
Years later, DataTraX remains the industry’s most accurate and best-documented HDD steering program—creating the most accurate As-builts and data packages, DataTraX is trusted worldwide to deliver results when precision matters most.
The Industry’s Gold Standard in HDD Navigation
At Horizontal Technology, Inc., precision starts with expertise. Our navigators set the benchmark for training and experience, ensuring every project benefits from HDD’s most skilled professionals.
With our 55-acre training facility, featuring a sophisticated elevated tracking simulation, we don’t just meet industry standards—we create them. No other steering service provider demands the same rigorous classroom, field, and annual certification requirements that we do.
Our navigation staff averages more than 11 years of HDD experience, with several experts boasting 20+ years in the field. When success depends on accuracy, experience matters—and no one invests in training like Horizontal Technology.
When Precision Counts, Trust the Best
For unmatched expertise, proven reliability, and precision-driven results, partner with the leaders in HDD navigation. Contact us today and experience the difference expertise makes.
